Basic op-amp circuits (many useful ideas) |

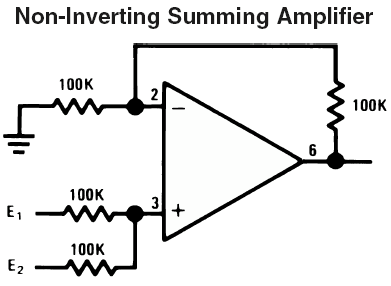

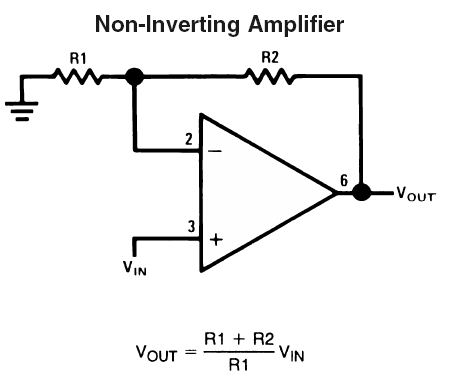

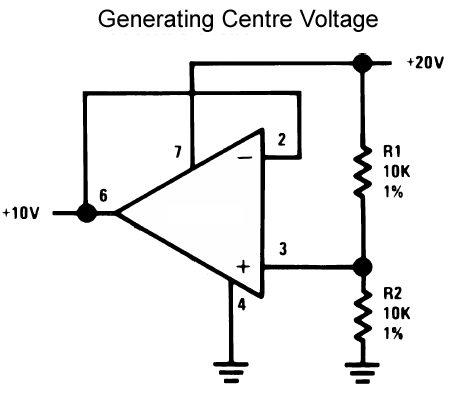

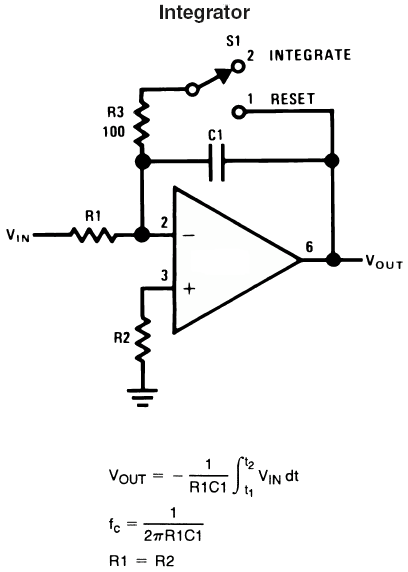

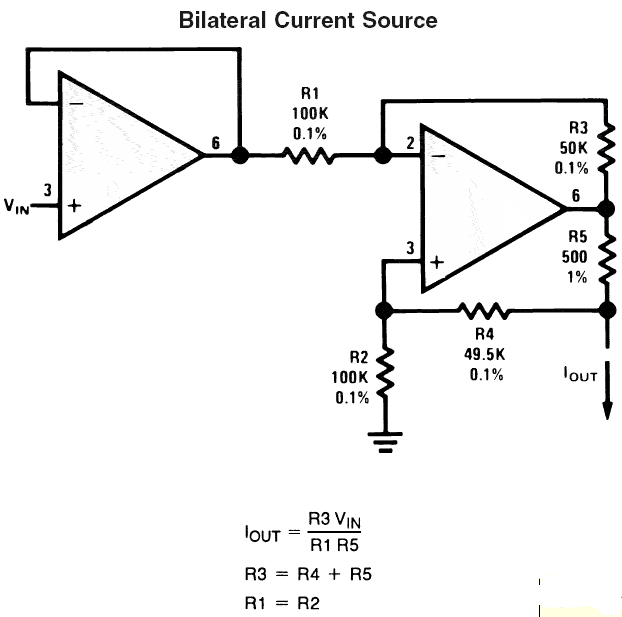

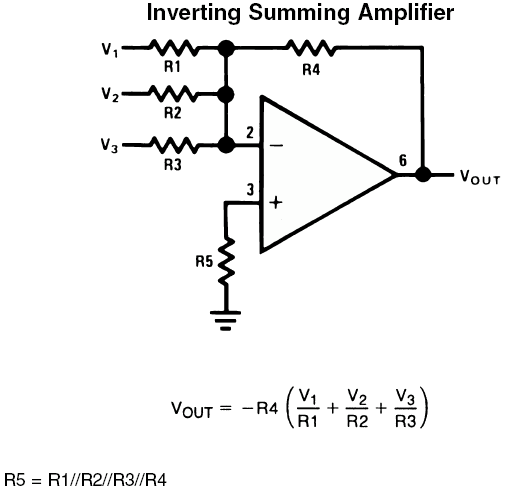

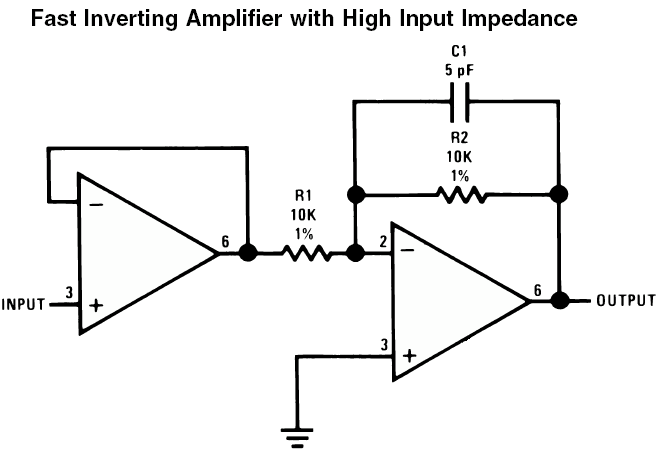

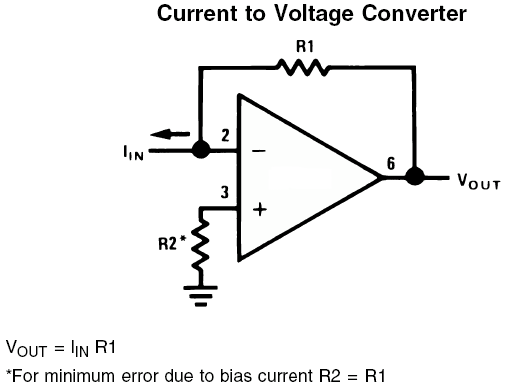

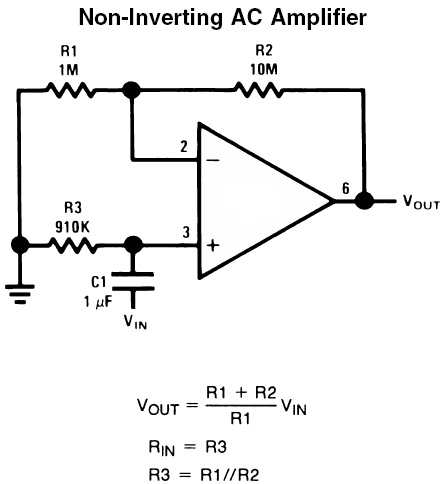

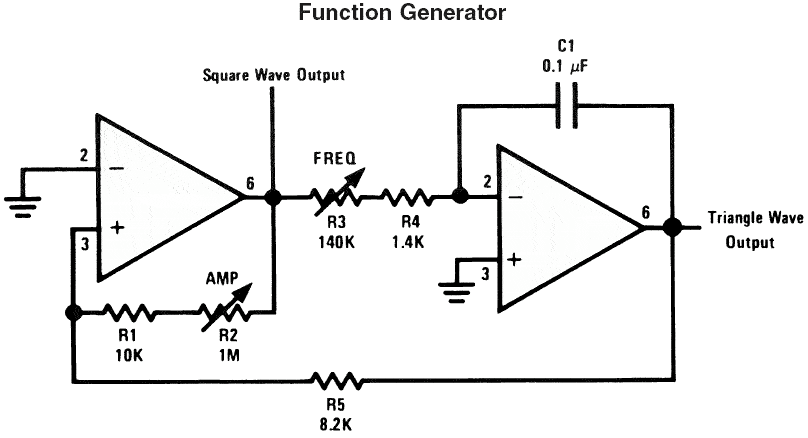

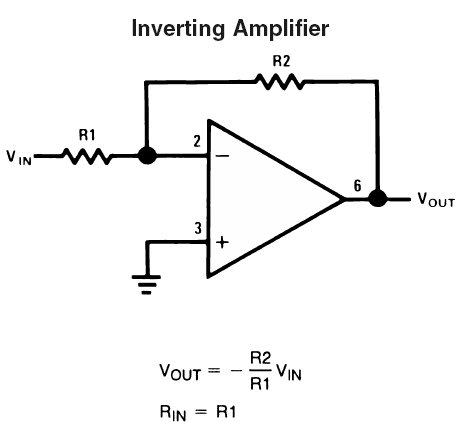

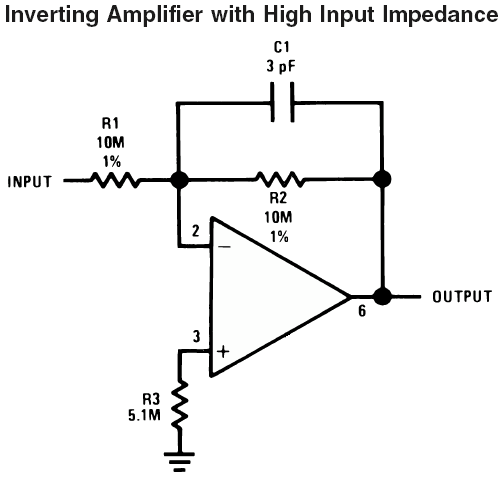

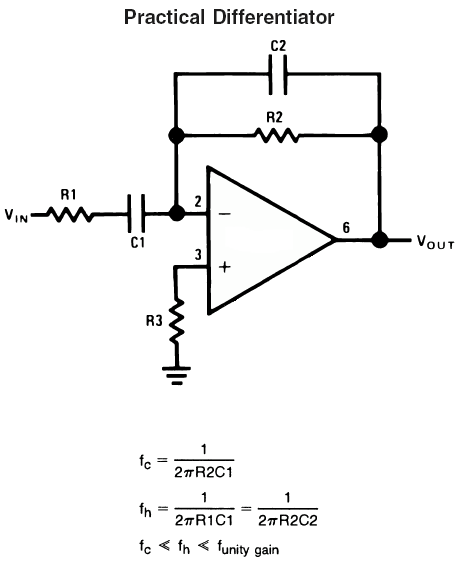

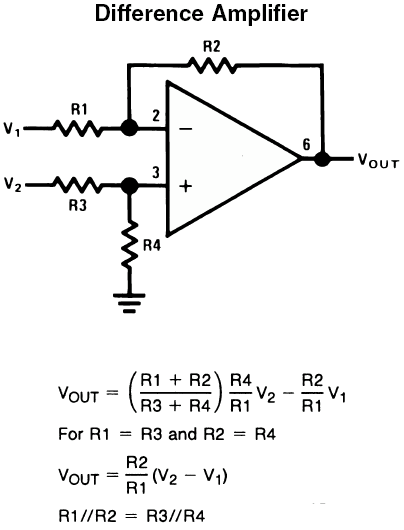

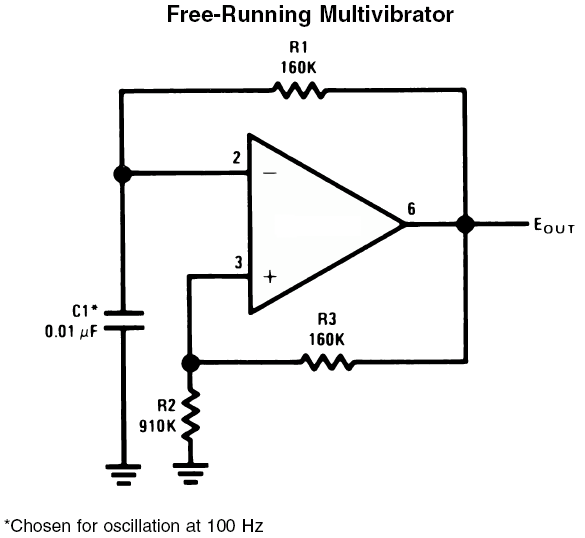

inv. amp, non inv. amp, difference amp, inv. sum amp, non inv. sum amp, inv. high Z amp, fast inv. amp, non inv. ac amp, differentiator, integrator, current (sinking)/voltage conv., centre voltage gen., multivibrator, function generator, current source1 |
Basic low-cost CMOS timer circuits made with CD40106
(on delay, off delay, one-shot pulse, multivibrator) |
|

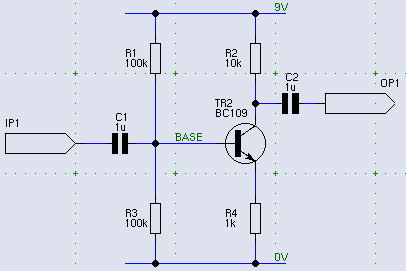

Basic transistor circuits |
|

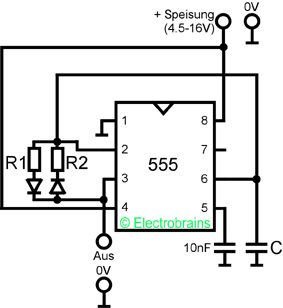

Some good 555 circuits |
